Bassik 3 Way 0 to 0 – 4 Gauge High Current Fuse Distribution Block

$13.99

Product code: BK-2030

Choose attributes above to add to cart.

Shipping

Fast 2-3 Day Standard Delivery

Warranty

One Year warranty on all KnuKonceptz products

Returns

No restocking fees on timely returns

Payment

payment payment payment payment payment

Item description

Bassik – simple, clean, easy. This is the foundation of what KnuKonceptz calls Bassik. Easy to install, simple to connect and cost effective! The BK-2030 accepts two 0 or 4 gauge in and allows for two 0 gauge and one 4 gauge fused output without the use of adapters. Oversized allen screws can secure either gauge without any modification or additional parts to complicate the design.

The BK-2030 has three fused outputs, left / center / right. Each output is fused by a Mini-ANL style fuse. The left and right side output use two mini-ANL fuses in parallel per output. This feature allows the installer to fuse for loads up to 300A on these two circuits. The center output has a maximum fuse capacity of 150A. When ordering a 300A fuse, you will receive two 150A fuses for that selected circuit (150 x 2 = 300A) The same principle applies for an 80A load, you will receive two 40A fuses (Applies to Left / Right outputs only)

Your choice of three fuse ratings are included with the BK-2030. Select “Link” to turn your BK-2030 into a three way ground distribution block

Item description

Item description

Bassik - simple, clean, easy. This is the foundation of what KnuKonceptz calls Bassik. Easy to install, simple to connect and cost effective! The BK-2030 accepts two 0 or 4 gauge in and allows for two 0 gauge and one 4 gauge fused output without the use of adapters. Oversized allen screws can secure either gauge without any modification or additional parts to complicate the design.
The BK-2030 has three fused outputs, left / center / right. Each output is fused by a Mini-ANL style fuse. The left and right side output use two mini-ANL fuses in parallel per output. This feature allows the installer to fuse for loads up to 300A on these two circuits. The center output has a maximum fuse capacity of 150A. When ordering a 300A fuse, you will receive two 150A fuses for that selected circuit (150 x 2 = 300A) The same principle applies for an 80A load, you will receive two 40A fuses (Applies to Left / Right outputs only)
Your choice of three fuse ratings are included with the BK-2030. Select "Link" to turn your BK-2030 into a three way ground distribution block

Choose Your Fuse: Fuses are always included at no extra charge! Need help calculating which size you need? See our FAQ!



You’re Grounded: KnuKonceptz makes your wiring clean with our ground links. Pair up your fuse block with these brass buss bars and turn your fuse block into a ground block.



No Adapters Needed: Internal adapters add contact points that could increase resistance within your electrical system, sucking valuable current from your amplifiers.

Specifications

UBT Battery
FinishNickel Chrome
Outputs0 Gauge, 4 Gauge, 8 Gauge + OEM Connection
Dimensions2.625″(W) x 2.0″(H) x 1.125″(D) with cover
Warranty1 Year
Insulated Cover IncludedYes

Description

Bassik – simple, clean, easy. This is the foundation of what KnuKonceptz calls Bassik. Easy to install, simple to connect and cost effective! The BK-2030 accepts two 0 or 4 gauge in and allows for two 0 gauge and one 4 gauge fused output without the use of adapters. Oversized allen screws can secure either gauge without any modification or additional parts to complicate the design.

The BK-2030 has three fused outputs, left / center / right. Each output is fused by a Mini-ANL style fuse. The left and right side output use two mini-ANL fuses in parallel per output. This feature allows the installer to fuse for loads up to 300A on these two circuits. The center output has a maximum fuse capacity of 150A. When ordering a 300A fuse, you will receive two 150A fuses for that selected circuit (150 x 2 = 300A) The same principle applies for an 80A load, you will receive two 40A fuses (Applies to Left / Right outputs only)

Your choice of three fuse ratings are included with the BK-2030. Select “Link” to turn your BK-2030 into a three way ground distribution block

Additional information

Weight 0.8 lbs
Fuse Output 1

Ground Link, 40A (20×2), 60A (30×2), 80A (40×2), 100A (50×2), 120A (60×2), 160A (80×2), 200A (100×2), 240A (120×2), 300A (150×2)
Fuse Output 2

Ground Link, 20 Amp, 30 Amp, 40 Amp, 50 Amp, 60 Amp, 80 Amp, 100 Amp, 120 Amp, 150 Amp
Application

Car, Marine, Solar
Fuse Output 3

Ground Link, 40A (20×2), 60A (30×2), 80A (40×2), 100A (50×2), 120A (60×2), 160A (80×2), 200A (100×2), 240A (120×2), 300A (150×2)
Usage

Power

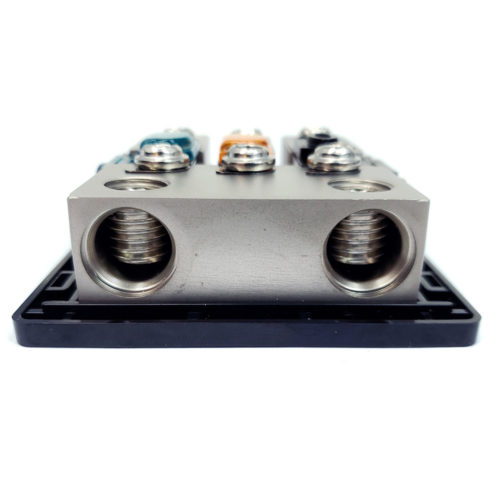

Flexibility – Dual Cable Inputs

The BK-2030 Fuse Block has dual cable inputs, only one is required to power all three outputs. With the second cable port you can:

  • Daisy chain additional blocks for additional outputs in larger systems
  • Connect to a rear mounted battery, linking it to the rest of your system
  • Add a capacitor into the system
  • Using both inputs from a battery source will reduce voltage loss
  • IF Installing a combined fuse rating over 350A (total sum of fuses installed), connecting both inputs to a battery source is advised.

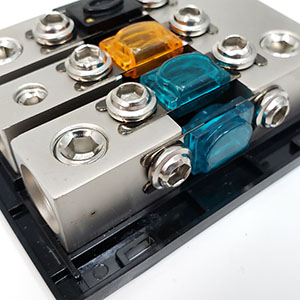

High Current Capacity – Fuses in Parallel

  • Using multiple smaller fuses in parallel reduces voltage loss across the connection
  • This is from the increased surface area of a multiple fuses versus a single fuse
  • Less voltage loss means more power to your system
  • Achieve higher amperage capacity in a compact space. Multiple smaller fuses can achieve higher loads than a single fuse due to thermal capacity
  • When ordering, you will receive two fuses per 0 gauge circuit and a single fuse for the 4 gauge output. The 0 Gauge Fuse will total the fuse rating you selected. Ex: ordering 240A fuse, you will receive 120Ax2 per 0 Gauge output (240A total)

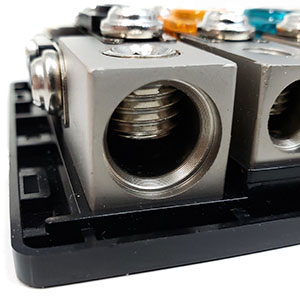

No Adapters Needed – Oversized Hardware

  • Internal gauge adapters add unnecessary contact points
  • Extra contact points can increase resistance, lowering your voltage.
  • By using larger diameter set screws, our block can hold a large or small gauge wire without the need for an adapter

Frequent questions

  • How do I determine what size fuses I need for this fuse block?

    Each output of a fuse distribution block normally is connected to a single amplifier. Each amplifier will have either a fuse on board or the manufacture will state within the manual’s installation guide or spec sheet what the max fuse rating or current draw of the amplifier is. If your amp has three 30A fuses on boards, you want a 100A fuse for that particular output of this block (90A is not an option we offer). If the second amp has a single 40A fuse, then a 40A fuse goes into that output of the block and thus a 100A and 40A would be required.

  • The 0 Gauge output on the BK-2030 uses two fuses, why?

    To achieve higher load capacity, the fused 0 gauge output each use two Mini-ANL fuses. When ordering your fuse block, all fused 0 gauge outputs will include two fuses, half the size of the load requested. For example, if you order the BK-2030 with 240A fuses on the 0 gauge output, you will receive 120Ax2 per output.

  • This block has two inputs, do I need to use both?

    The BK-2030 has two input ports, only one input is required to power both fused outputs. The second port is optional and can be used to connect additional rear mounted batteries, a capacitor, or to daisy chain additional blocks together. Having the second port makes this fuse block more flexible to the installer than a single port block. IF Installing a combined fuse rating over 350A (total sum of fuses installed), connecting both inputs to a battery source is advised.

  • Can I use this block as a ground block?

    Yes, KnuKonceptz offers ground links to turn this block into a 5 Way Ground Block. These Mini-ANL buss bars replace the fuse and allow the BK-2030 to be used from a common grounding point.
