Kolossus 1/0 Gauge OFC Amplifier Installation Wiring Kit

Kolossus 0 Gauge Power Amp Installation Kit

$124.99

Product code: KFX-PK0

Color

Fuse Size

Clear

Choose attributes above to add to cart.

Warranty

One Year warranty on all KnuKonceptz products

Item description

The KnuKonceptz Kolossus 0 gauge amp kit features our top of the line Tinned Oxygen Free Copper Kolossus power and ground wire. Made up of ultra flexible PVC and ultra fine tinned strands of oxygen free copper (OFC), the Kolossus Kable is the standard for which all others are compared to.

This kit is designed to be a base for installation of a large, high current audio system. KnuKonceptz includes additional 0 gauge ground wire to allow for Battery to Chassis Ground. The KnuKonceptz FH-20 fuse holder comes with your choice of fuse size (see the FAQ to determine what size is right for you.)The fuse holder does not come installed within the cable. This allows the installer to place the inline fuse holder in an optimum location during installation. It also allows the installer to extend the power wire 1-3′ by using the inline fuse holder to add cable to the main run (leaving the 18′ as one unit and using the FH-20 to “splice” a few extra feet of wire should your installation require a longer run)

Additional Speaker Wire and RCA’s will be required to complete your installation.

Item description

This kit is designed to be a base for installation of a large, high current audio system. KnuKonceptz includes additional 0 gauge ground wire to allow for Battery to Chassis Ground. The KnuKonceptz FH-20 fuse holder comes with your choice of fuse size (see the FAQ to determine what size is right for you.)The fuse holder does not come installed within the cable. This allows the installer to place the inline fuse holder in an optimum location during installation. It also allows the installer to extend the power wire 1-3' by using the inline fuse holder to add cable to the main run (leaving the 18' as one unit and using the FH-20 to "splice" a few extra feet of wire should your installation require a longer run)

Additional Speaker Wire and RCA's will be required to complete your installation.

Rated in Amps, Not Watts: Here at KnuKonceptz, you will not find a random watt rating on our packaging or in a giant font across our images. No, we rate our kits the same way electricians rate the wiring in your home, in amps, by following industry standards.

You’re Grounded: We include a healthy amount of ground wire in all our 1/0 kits so that you can add a short battery to chassis ground. When adding a large system, you need to upgrade the factory grounds too!

Choose Your Fuse: Your system may need 1/0, but that does not mean it needs a 300A fuse! Our 1/0 kits include your choice of fuse size! Need help calculating which size you need? See our FAQ!

Specifications

UBT Battery
Finish	Nickel Chrome
Outputs	0 Gauge, 4 Gauge, 8 Gauge + OEM Connection
Dimensions	2.625″(W) x 2.0″(H) x 1.125″(D) with cover
Warranty	1 Year
Insulated Cover Included	Yes

Specifications

Kolossus 0 Gauge Power Amp Installation Kit
Amp Kit Type	Power Only
Wire Gauge (AWG)	1/0 Gauge
Conductor Material	Tinned Oxygen Free Copper
Power Wire Length	18 Feet
Ground Wire Length	5 Feet
Speaker Wire	Not Included
RCA Cable	Not Included
Fuse Size/Type	Your Choice of ANL Fuse

Description
Additional information

Description

Additional Speaker Wire and RCA’s will be required to complete your installation.

Additional information

Weight	11 lbs
Color	Blue, Red
Fuse Size	150 Amp, 200 Amp, 250 Amp, 300 Amp
Application	Car, Marine
Usage	Power

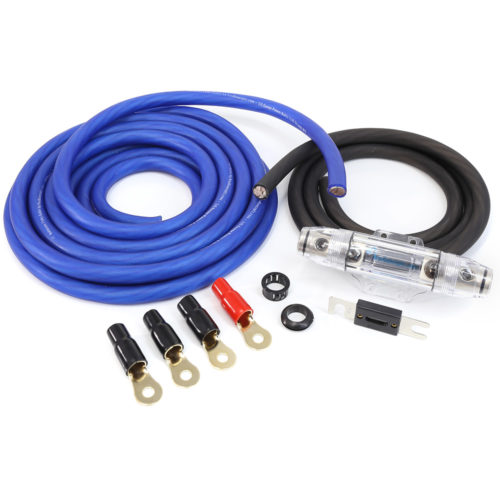

Kolossus Fleks 1/0 Gauge Power Amp Kit

A. Power Wire: 18 Feet Tinned OFC 1/0 Gauge Ultra Flex Blue
B. Ground Wire: 5 Feet Tinned OFC 1/0 Gauge Ultra Flex Black
C. Fuse Holder: In Line Fuse Holder with ANL Fuse
D. 1/0 Gauge Gold Plated Ring Terminals(4)
E. Firewall grommet and 4 Gauge bushing

Not Pictured: Wire loom and wire ties

Plain and Simple Specifications

All KnuKonceptz Cable Products clearly state these specifications

- Wire type – CCA or OFC

These materials are commonly used, but not commonly stated when shopping online. Know what you are purchasing. Both metals are capable of performing up to their rated loads.

- American Wire Gauge

Wire gauge is crucial to powering your system correctly. Undersized cable will create unsafe conditions and may shorten your amplifier’s life.

- Max Load (amps)

Wire’s ampacity changes with gauge and materials. KnuKonceptz does not rate cable based on watts. Amplifier manufactures do not always truthfully state the output of their product, check your on board fuses!

True American Wire Gauge (AWG) Products

Using American Wire Gauge standards, the gauge of stranded wire is determined by the total area of the conductor.
To calculate this you would take the area of each strand and add it together. This area, in square mm, then determines gauge.
Diameter is not as critical with stranded wire, this is due to the tiny air gaps between each strand. Diameter may fluctuate with strand size and how tightly wound the rope of the cable is.
The smaller the number, the larger the wire, until you reach zero or aught (0). From zero, you then have double aught (00 or 2/0), three aught (000 or 3/0) …
Based on AWG, the true gauge of this cable is 0 Gauge

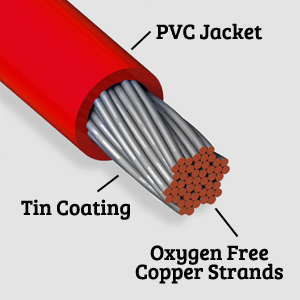

Tinned Copper – What the Pros Recommend

When bare copper is exposed to oxygen, it oxidizes over time (turns brown/green).
These contaminants are damaging to the cable’s ability to conduct electricity.
Tin provides a protective barrier from oxygen to the bare copper underneath.
By adding a thin layer of tin to each strand, the cable is no longer able to oxidize.
Tin does not react with oxygen and therefore the cable will never change color or have any change in its ability to conduct electricity

Frequent questions

How many watts can this amp kit handle?

At KnuKonceptz, we do not use “watts” to rate our amp kits. This is a very inaccurate method to determine what the proper gauge wire required for your amp installation. There are many amp manufactures and not all of them represent the output of their product accurately. Please refer to your amplifier’s fuse rating, this is a number a manufacture can not fake, well they could but it would put their product in harms way! Add up the fuses on the end of both of your amp (ex Amp A has three 40A fuses = 120A draw; Amp B has two 30A fuse = 60A Draw; 180A system total draw) If this number is under 300A, this kit will fit your application.
How do I determine what size fuses I need for the inline fuse holder?

Using the information from the answer above, the example system draw totals 180A therefore a 200A fuse is the minimum required and the safest option for the inline fuse holder
I need a longer power wire, what can I do?

The fuse holder does not come installed within the kit’s cable.This allows the installer to place the inline fuse holder in an optimum location during installation. It also allows the installer to extend the power wire 1-3Ft by using the inline fuse holder to add cable to the main run (leaving the 18Ft as one unit and using the FH-20 to “splice” a few feet of wire)
Why should I upgrade the car's factory battery to chassis ground under the hood?

Your vehicle’s wiring was engineered to work with the factory electrical load. By adding a massive current drawing load requiring a heavy 1/0 gauge power wire, you also need to upgrade the vehicle’s ground wire. This kit includes the appropriate parts to complete this upgrade. The 5′ section of ground should be cut one time (to make two sections). These do not need to be even length, but rather cut to fit your installation’s need. You may only need 18″ to connect the battery to your vehicles chassis. The remaining 1/0 gauge ground wire is then used to connect the audio amplifier to your car’s chassis.
