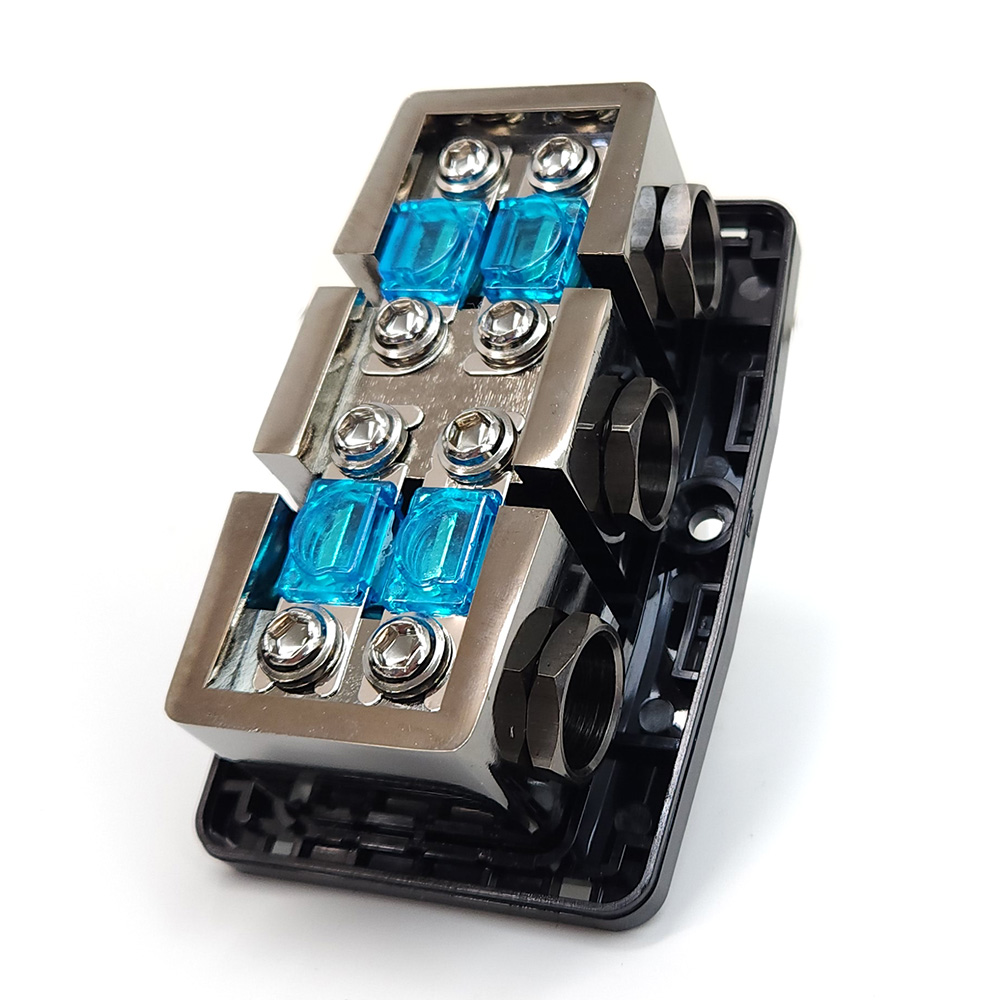

KonFUSED 2 Way Fuse / 6 Way Ground Block

$27.99

Product code: KNF-36

Choose attributes above to add to cart.

Shipping

Fast 2-3 Day Standard Delivery

Warranty

One Year warranty on all KnuKonceptz products

Returns

No restocking fees on timely returns

Payment

payment payment payment payment payment

Item description

The KNF-36 offers multi-port 0 or 4 gauge output with fuse ratings from 40 to 300A per circuit. Our KNF-36 has two ports per output, making it flexible when determining location during your installation. These dual ports also make the KNF-36 fuse block capable of dual 0 gauge outputs per circuit, perfect for amps with dual power and ground inputs. Have a second battery to connect? The KNF-36 can connect two batteries together using its center, dual port input section. With this pass through design, multiple blocks can be linked endlessly.

There are three main configurations for the KNF-36

  • 2 Way Fuse Block with single outputs per circuit.
  • 2 Way Fuse Block with dual outputs per circuit.
  • 6 Way Ground Distribution

With KnuKonceptz Mini-Links, connect up to six 0 gauge cables to the KNF-36 to create a central ground point for your high output system

Included with each KNF-36 are a total of six compression fittings, two 4 gauge and four 0 gauge. Additional fittings are available in the installation accessories section. KnuKonceptz also includes your choice of fuse size or ground links with your purchase. These are selected from the drop down menu above.

Schematics are available detailing each several standard configurations in the additional photos section of this item.

Item description

Item description

The KNF-36 offers multi-port 0 or 4 gauge output with fuse ratings from 40 to 300A per circuit. Our KNF-36 has two ports per output, making it flexible when determining location during your installation. These dual ports also make the KNF-36 fuse block capable of dual 0 gauge outputs per circuit, perfect for amps with dual power and ground inputs. Have a second battery to connect? The KNF-36 can connect two batteries together using its center, dual port input section. With this pass through design, multiple blocks can be linked endlessly. There are three main configurations for the KNF-36
  • 2 Way Fuse Block with single outputs per circuit.
  • 2 Way Fuse Block with dual outputs per circuit.
  • 6 Way Ground Distribution
With KnuKonceptz Mini-Links, connect up to six 0 gauge cables to the KNF-36 to create a central ground point for your high output system
Included with each KNF-36 are a total of six compression fittings, two 4 gauge and four 0 gauge. Additional fittings are available in the installation accessories section. KnuKonceptz also includes your choice of fuse size or ground links with your purchase. These are selected from the drop down menu above.
Schematics are available detailing each several standard configurations in the additional photos section of this item.

Specifications

UBT Battery
FinishNickel Chrome
Outputs0 Gauge, 4 Gauge, 8 Gauge + OEM Connection
Dimensions2.625″(W) x 2.0″(H) x 1.125″(D) with cover
Warranty1 Year
Insulated Cover IncludedYes

Specifications

KonFUSED 2 Way Fuse / 6 Way Ground Block
Dimensions (L x W x H) 2.8" x 4.6" x 1.85"
Total Ports: 6
Fittings Included: Four 1/0, Two 4 Gauge
Fuse Type: Mini-ANL
Finish: Nickel Silver

Description

The KNF-36 offers multi-port 0 or 4 gauge output with fuse ratings from 40 to 300A per circuit. Our KNF-36 has two ports per output, making it flexible when determining location during your installation. These dual ports also make the KNF-36 fuse block capable of dual 0 gauge outputs per circuit, perfect for amps with dual power and ground inputs. Have a second battery to connect? The KNF-36 can connect two batteries together using its center, dual port input section. With this pass through design, multiple blocks can be linked endlessly.

There are three main configurations for the KNF-36

  • 2 Way Fuse Block with single outputs per circuit.
  • 2 Way Fuse Block with dual outputs per circuit.
  • 6 Way Ground Distribution

With KnuKonceptz Mini-Links, connect up to six 0 gauge cables to the KNF-36 to create a central ground point for your high output system

Included with each KNF-36 are a total of six compression fittings, two 4 gauge and four 0 gauge. Additional fittings are available in the installation accessories section. KnuKonceptz also includes your choice of fuse size or ground links with your purchase. These are selected from the drop down menu above.

Schematics are available detailing each several standard configurations in the additional photos section of this item.

Additional information

Weight N/A
Application

Car, Marine
Usage

Power
Fuse Output 1

Ground Link, 40A (20×2), 60A (30×2), 80A (40×2), 100A (50×2), 120A (60×2), 160A (80×2), 200A (100×2), 240A (120×2), 300A (150×2)
Fuse Output 2

Ground Link, 40A (20×2), 60A (30×2), 80A (40×2), 100A (50×2), 120A (60×2), 160A (80×2), 200A (100×2), 240A (120×2), 300A (150×2)

Frequent questions

  • Your description says this block has dual inputs, do I need to use both?

    The center section of the KNF-36 is the input. Only one port is required to power both outputs of the KNF-36. The second port of the center section can be used as a “pass through” to connect a rear battery to the rest of the audio system at the distribution block.

  • The KNF-36 comes with 6 fittings, what if I need different sizes?

    The KNF-36 has Four 1/0 gauge and Two 4 gauge fittings, additional fittings are $0.99/each

  • Why do you use two fuses per circuit on this block?

    Mini-ANL fuses are limited to 150A per fuse due to the fuses’ thermal limits. By using two fuses in parallel we are able to increase the maximum load sustainable by the Mini-ANL fuse and at a lower resistance compared to a single large fuse. Mini-ANL fuses are more compact and less expensive versus ANL fuses.
